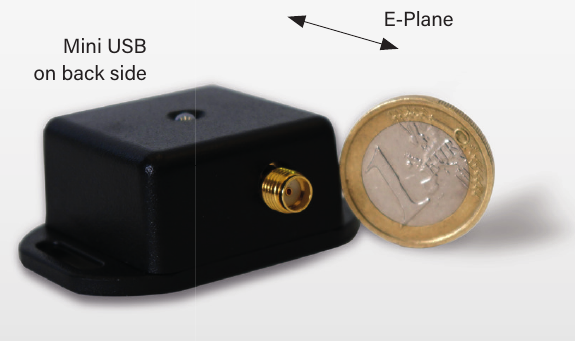

The TicSource-288G is designed to meet the requirements of sophisticated imaging setups. Being powered through USB, it offers up to 0.3 mW radiated power at 288 GHz and a TTL input for source chopping up to 100 kHz. The compact housing enables easy integration of the source into imaging setups and retains a small footprint.
| Fixed CW at 288 GHz |
| Other optics on request available |

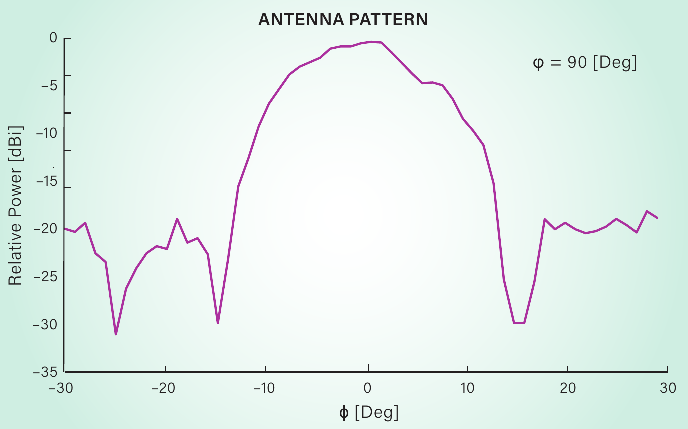

| 21 dBi silicon lens |
| USB powered |
| SMA connector for chopping with up to 100 kHz (TTL signal) |
| Up to 0.3 mW radiated power |
| Chopping with up to 100 kHz with TTL signal (SMA connector) |
| Dimension (L x W x H) | 3 cm x 3 cm x 2 cm |
| Weight | 80 Gram |
Specifications are subject to change without prior notice.
