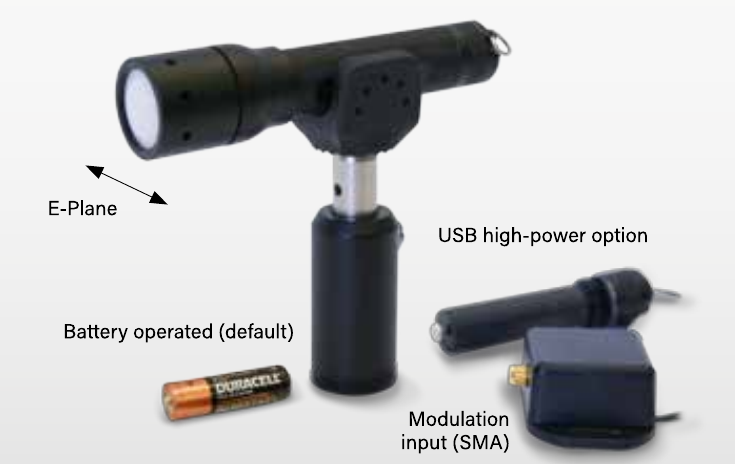

The TicTorch-288G is a continuous-wave source with unprecedented compactness and operability. The battery-operated source in a torch housing enables on-the-fly terahertz sensor tests and portable THz illumination with manual focus point adjustment.
Bandwidth
Fixed CW at 288 GHz
Optics
Other optics on request available

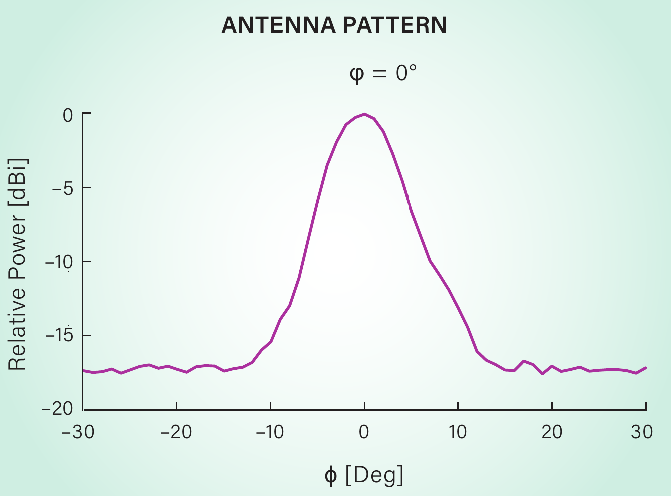

21 dBi silicon lens
Integrated secondary PTFE lens
Manual focus point readjustment
Output power
Up to 0.15 mW radiated power (1.5 V AA battery operated)
Up to 0.3 mW radiated power (with modulation and USB power option)
Phase Noise
–87 dBc/Hz at 1 MHz offset
Dimensions
Dimension (L x W x H)
12 cm x 2.5 cm x 2.5 cm
Weight
100 Gram
Specifications are subject to change without prior notice.
